Trough chain conveyors
for horizontal transport or transport on a slight upward incline
Chain conveyors transport floury, grainy and lumpy bulk materials horizontally or on a slight upward incline. Chain conveyors can also be used as intake chain conveyors and for silo discharge.
Starting with our standard modular-system we adapt the chain conveyor to the product characteristics, the installation situation and the process requirements.
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2021/11/tkf_grundmodell_1050_1050_t-525x525.png)
Trough chain conveyorBasic design
- Motor mounting platform with geared motor and flexible coupling

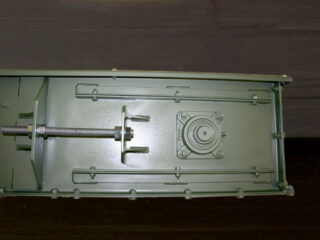

- Tensioning station and driving station, outside varnished and inside untreated, or hot-dip galvanised
- Troughs of strip-galvanised steel or outside varnished and inside untreated
- Return rollers made of plastic (standard for KF240, KF315 and KF350) or ball-bearing return rollers made of steel (standard for KF440 and KF560)
- Wear rails made of highly wear-resistant steel, e.g. Hardox, guide rail made of St52. With plastic bottom no wear rail
- Conveyor chain according to DIN 8165 with single bent-back plates
Chain conveyor sizes and technical data
Chain conveyor | KF240 | KF315 | KF350 | KF440 | KF560 | |
---|---|---|---|---|---|---|
Trough width | mm | 240 | 315 | 350 | 440 | 560 |
Intended JACOB pipework Ø | mm | 200 | 250 | 300 | 350 | 350 |
Capacity for grain 0.75 t/m³ | ||||||
max. fill height | mm | 210 | 320 | 410 | 410 | 410 |
Rated capacity at 0.5 m/s | t/h | 60 | 100 | 150 | 200 | 250 |
Max. capacity at 0.5 m/s | t/h | 60 | 120 | 175 | 220 | 280 |
Max. length at rated capacity | m | up to 59 | up to 58 | up to 38 | up to 36 | up to 28 |
Speed at 0.5 m/s | rpm | 40 | 27 | 21 | 21 | 21 |
Material thickness in the standard design | ||||||
Base plate made of steel with plastic base, steel/plastic |
mm mm |
4 3/10 |
4 3/10 |
4 3/10 |
4 4/12 |
5 4/12 |
Side plate | mm | 3 | 3 | 3 | 3 | 4 |
Cover | mm | 2 | 2 | 2 | 2 | 3 |
Chain |
||||||
Chain breaking force | N | 90000 | 140000 | 140000 | 180000 | 180000 |
Plates | mm | 35 x 5 | 45 x 6 | 45 x 6 | 50 x 8 | 50 x 8 |
Chain pitch | mm | 125 | 125 | 160 | 160 | 160 |
Chain wheel, number of teeth | 6 | 9 | 9 | 9 | 9 | |
Weights of the elements with chain | ||||||
Driving station without geared motor or material to be conveyed | kg | 118 | 181 | 316 | 546 | 763 |
Tensioning station without material to be conveyed | kg | 71 | 117 | 168 | 265 | 362 |
Trough empty | kg/m | 40 | 56 | 75 | 98 | 133 |
Trough at max. fill height with grain 0.75 t/m³ | kg/m | 78 | 132 | 183 | 233 | 305 |
Chain conveyor design and accessories
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2022/03/einlaufkasten_1810_w-320x226.jpg)
Inlet box for flat or roof-shaped cover
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2022/03/seiteneinlaufnase_1810_w-320x226.png)
Side inlet with dosing valve
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2022/03/annahmetrog_1810_w-320x226.jpg)
Intake trough
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2022/03/auslauf_uebergangsstueck_1810_w-906x641.jpg)
Spout for Jacob pipe system
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2022/03/schanzklappe_mit_sensor_1810_w-320x226.png)
Spring-loaded cover for drive station with IFM IG511A inductive sensor and IFM EVC04A cable as overflow detector
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2022/03/schanzmelder_ki505a_1810_w-320x226.jpg)
Capacitive sensor as full detector or overflow detector
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2022/03/auslaufschieber_1810_w-320x226.png)
Outlet slide gate (manual, electrical, pneumatical)
with scrapper brush for the chain
Spout under the whole valve for maximum cleanliness
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2022/03/auslaufschieber_auslauf_1810_w-906x641.jpg)
Outlet slide gate (manual, electrical, pneumatical)
with scrapper brush for the chain
Spout under the outlet area
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2022/03/loser_gegenflansch_1810_w-320x226.png)
Loose counter flange for the whole slide gate
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2022/03/gegenflansch_auslauf_1810_w-320x226.png)
Loose counter flange for the outlet area
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2022/03/dachdeckel_1810_w-320x226.jpg)
Roof-shaped cover
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2022/03/kunststoffboden_1810_w-906x641.png)
Plastic bottom
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2022/03/sichtfenster_1810_w-320x226.jpg)
Inspection window
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2022/03/rueckfuehrrolle_1810_w-320x226.jpg)
Return rollers made of white PE
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2022/03/rueckfuehrrolle_stahl_gummiert_1810_w-320x226.jpg)
Return rollers made of steel, rubberized
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2022/03/standardkette_1810_w-906x641.png)
Conveyor chain according to DIN 8165 with single bent-back plates
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2022/03/kette_mit_erhoehten_laschen_1810_w-320x226.png)
Conveyor chain with extra raised link plates welded-on for inclined conveying
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2022/03/kette_rueckfuehrbecher_1810_w-320x226.jpg)
Return buckets
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2022/03/kettenrad_geteilt_1810_w-320x226.jpg)
Divided chain wheel
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2022/03/regenhaube_motor_1810_w-906x641.jpg)
Rain cover for geared motor
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2022/03/verstaerkte_spannstation_1810_w-320x226.jpg)
Reinforced tension unit for reversible direction of transport
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2022/03/trogkettenfoerderer_totraumreduziert_1810_w-320x226.jpg)
Tension unit dead space reduced
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2022/03/einlauf_obertrum_1810_w-320x226.jpg)
Inlet for dosing via upper chain
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2022/03/trogkettenfoerderer_trogerhoehung_1810_w-906x641.jpg)
Higher trough with intermediate bottom
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2021/07/lm-320x226.png)
Gear oil: mineral oil or synthetic (food compatible)
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2022/03/oberflaeche-320x226.png)
Tensioning station and driving station varnished or hot dip galvanized
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2021/07/betriebsanleitung-320x226.png)
Operating instructions
German or English
Dimension drawning for chain conveyors
![Trough chain conveyors](https://www.paul-groth.com/wp-content/uploads/2022/03/trogkettenfoerderer_massblatt_2752-560x420.jpg)
The dimensions of our different chain conveyor types and their connecting dimensions are shown in the dimension drawing and the following table.
Chain conveyor types and dimensions
KF240 | KF315 | KF350 | KF440 | KF560 | ||
---|---|---|---|---|---|---|
a | mm | 240 | 315 | 350 | 440 | 560 |
b | mm | 317 | 392 | 427 | 517 | 637 |
c | mm | 321 | 449 | 571 | 571 | 571 |
d | mm | 810 | 810 | 952 | 952 | 952 |
e | mm | 395 | 228 | 500 | 500 | 500 |
f | mm | 327 | 327 | 357 | 357 | 357 |
g1 | mm | Ø 200 | Ø 250 | Ø 300 | Ø 350 | arrangement |
g2 | mm | 250 | 300 | 300 | 350 | arrangement |
h | mm | 386 | 461 | 538 | 628 | 748 |
i | mm | 885.5 | 1080 | 1025 | 1310 | - |
j | mm | 672 | 672 | 1060 | 985 | - |
k | mm | 204 | 252 | 285 | 360 | - |
l | mm | 465 930 1240 1860 2480 2945 |
465 930 1240 1860 2480 2945 |
465 930 1240 1860 2480 |
465 930 1240 1860 2480 |
465 930 1240 1860 2480 |
m | mm | 353 | 432 | 430 | 480 | - |
n | mm | 332 | 332 | 357 | 357 | - |
