JACOB Pipework Systems

modular pipe systems for bulk solids and air according

We have a comprehensive range of standard pipe components, which we can deliver at short notice or immediately from stock.

We manufacture transition pieces between your machines and the pipe system for you.

JACOB Pipework Systems

Pipe components
Basic design

  • Original JACOB pipework systems
  • Conveying pipe systems for bulk goods and air
  • Made of steel, painted or hot-dip galvanised, and stainless steel
  • Components with a tested pressure-surge resistance of up to 3 bar,
    special programme up to 10 bar
  • Delivery at short notice direct from our very extensive warehouse
  • We manufacture special components for you.





Product overview JACOB pipework systems

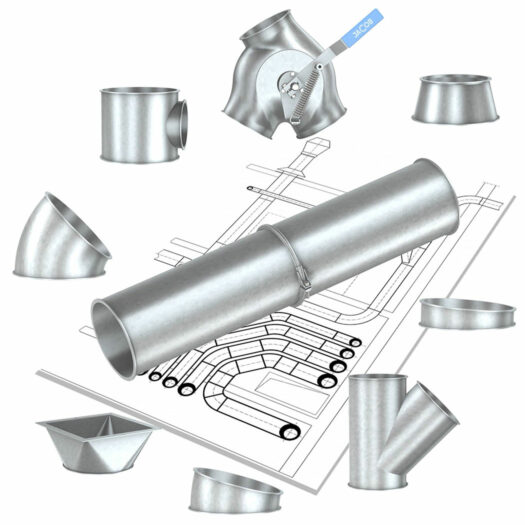

The pipe components shown below represent only one, but significant part of the entire JACOB product range.

JACOB Pipework Systems

Quick Connect pull-rings

JACOB Pipework Systems

Pull-ring
without/with sealing

JACOB Pipework Systems

U-shaped seals
(Silicone, NBR, EPDM)

JACOB Pipework Systems

Earthing bridges

JACOB Pipework Systems

Welded pipes
(200, 500, 1000, 2000 mm)

JACOB Pipework Systems

Welding end 55 mm

JACOB Pipework Systems

Push-in pipes

JACOB Pipework Systems

Ring seals for push-in pipes

JACOB Pipework Systems

Segments
(5°, 15°, 30°, 45°)

JACOB Pipework Systems

Bends R=2D
(30°, 45°, 60°, 90°)

JACOB Pipework Systems

Bends R=1D
(30°, 45°, 60°, 90°)

JACOB Pipework Systems

Bends for long radius

JACOB Pipework Systems

T-pieces

JACOB Pipework Systems

Forks 45°

JACOB Pipework Systems

Forks 30°

JACOB Pipework Systems

Symmetrical forks

JACOB Pipework Systems

Cone pieces

JACOB Pipework Systems

Connecting flanges

JACOB Pipework Systems

Counter flange for round connecting flange

JACOB Pipework Systems

Spouts without incline

JACOB Pipework Systems

Spouts 45°

JACOB Pipework Systems

Spouts 60°

JACOB Pipework Systems

Hose connections

JACOB Pipework Systems

Air outlet pipes

JACOB Pipework Systems

PU hoses

JACOB Pipework Systems

Special hose clamps

JACOB Pipework Systems

Bagging spouts

JACOB Pipework Systems

Bag clamps

JACOB Pipework Systems

Rain caps

JACOB Pipework Systems

Jet caps

JACOB Pipework Systems

Inspection T-pieces

JACOB Pipework Systems

Rubber covers

JACOB Pipework Systems

Inspection pipes

JACOB Pipework Systems

Cleaning pipes

JACOB Pipework Systems

Plexiglass pipes

JACOB Pipework Systems

Throttle valves

JACOB Pipework Systems

Pipe regulator gates

JACOB Pipework Systems

Air flow control gates

JACOB Pipework Systems

Pipe slide gates

JACOB Pipework Systems

Two-way valves asymmetrical
hand-operated (with / without sealing)

JACOB Pipework Systems

Two-way valves asymmetrical
pneumatically operated (with / without sealing)

JACOB Pipework Systems

Two-way valves symmetrical
hand-operated (with / without sealing)

JACOB Pipework Systems

Two-way valves symmetrical

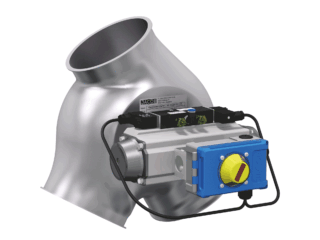

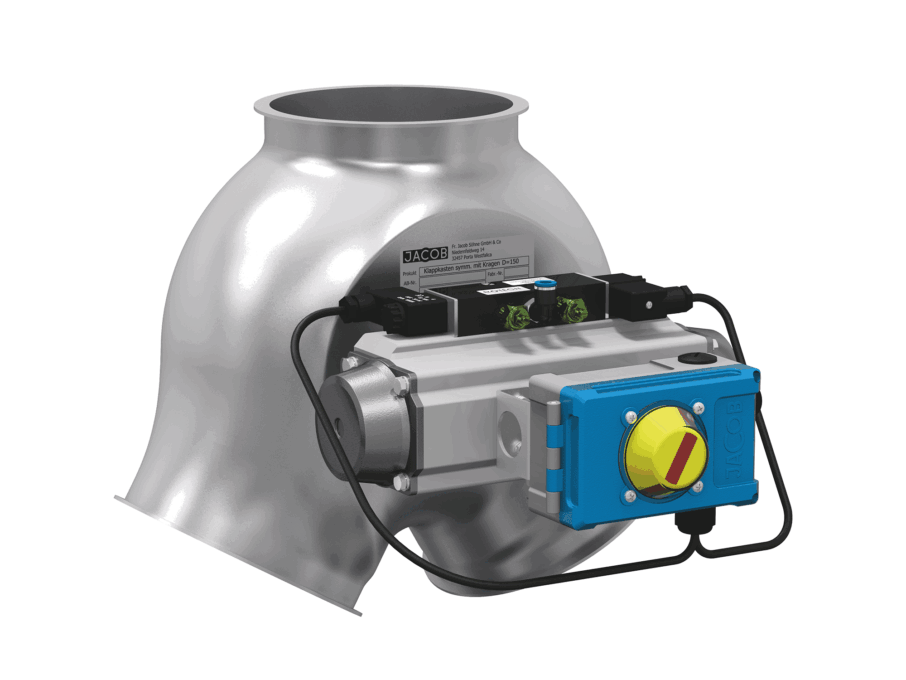

pneumatically operated (with / without sealing)

JACOB Pipework Systems

Turn-head distributors

JACOB Pipework Systems

Pipe clamps for wall mounting

JACOB Pipework Systems

Pipe clamps for ceiling mounting

JACOB Pipework Systems

Blank-off covers

Overview of our stock of JACOB pipework systems

A = all pipe type parts and clamping rings stocked in accordance with JACOB catalogue
b = pipes, segments and clamping rings stocked

Other diameters and material thicknesses on request.



Diameter in mm 60 80 100 120 150 200 250 300 350 400
primed 1 and 1.5 mm A A             b b
primed 2 mm     A A A A b b
primed 3 mm       A A A A A b b
galvanized 1 and 1.5 mm   A A A A A A A
galvanized 3 mm         A A A A
VA 1 and 1,5 mm A A A A A A A A
VA 2 mm     A A A A A A b b

For enquiries/orders, please specify the diameter and the material thickness or type as well as the material type of the pull-rings.
Pull-rings are available galvanised or in stainless steel.
Other combinations of diameters for cone pieces are available upon request.

We will be pleased to advise you.

JACOB Pipework Systems

Order form for JACOB pipework systems

For enquiries/orders, please indicate the selected diameter and material thickness or type in the table on the order form and specify the material type of the pull-rings.

For more than one diameter, please fill in the corresponding number of order forms.
Order form DE (PDF)

Examples from our production

How to contact us

Phone +49 4121-7957-0

Fax +49 4121-7957-79

eMail e-mail@paul-groth.com

Contact us

Use the contact form or email, and the right employee will contact you directly.

To the contact form
