Box tipper

for emptying of seed boxes

The boxes containing the bulk material are placed in the box tipping station with the help of a fork-lift truck. The station tips the contents of the boxes into a container for further processing.
The fork-lift truck then removes the empty boxes.

Box tipper

Box tipper - Crate dumpers
Basic design

  • Tipping operation is controlled electronically via pendant control handset or wireless remote control
  • Suitable for seed
  • Closed housing with connecting pieces for dust extraction
  • Material: steel, painted
  • For bulk materials with a bulk weight of up to 0.8 t/m³
  • Accessories
    Extraction device with filter and fan, downstream container and underframe

Dimension drawing for box tipper

Box tipper

Dimensions of box tipper

Box tipper   KB200 KB250
Height A mm 2280 2560
Width B mm 2340 2650
Depth C mm 1910 2200
Depth D mm 2200 2595
Drive kw 1.5 1.5
Weight kg 1300 1800
Box measures
Width mm 1600 1600
Depth mm 1050 1100
Height mm 1400 1700

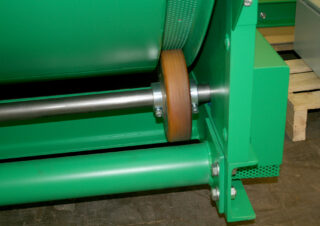

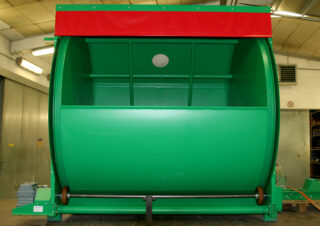

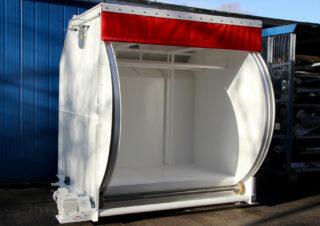

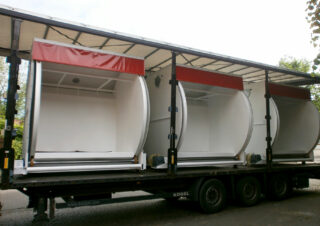

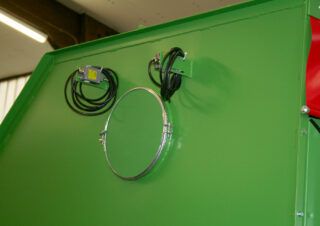

Examples from our production
